High Output 2:1 Transfer Pumps
High Output 2:1 Transfer Pumps

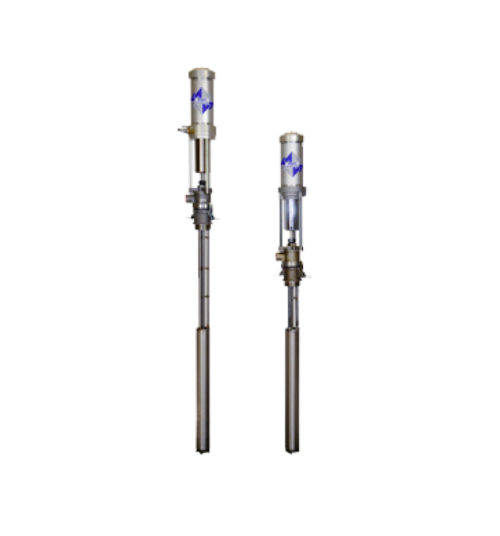

PMC Transfer Pumps are designed for use with polyurethane, epoxies and most industrial and commercial coatings. Built with a wetted and divorced fluid section to prevent crystallization from harsh chemicals.
- GHO 2:1 High Output Stainless Steel Transfer Pump for 55-Gallon Drums
- GHO-S 2:1 High Output Stainless Steel Transfer Pump for 30-Gallon Drums
Technical Specifications
GHO/GHO-S
Pressure Ratio
2.2:1
Output (Cont. Duty)
5.5 Gals/min
(20.8 Liters/min)
(20.8 Liters/min)
Output (Int. Duty)
11 Gals/min
(41.6 Liters/min)
(41.6 Liters/min)
Heater WattageCycles per Gallon
18.5 Cycles
Cycles per Liter
4.88 Cycles
Stroke
4″ (10.2 cm)
Maximum Air Pressure
120 psi (8.273 bar)
Air Inlet
1/4 NPT (F)
Fluid Output
3/4 NPT (F)
Air Consumption
2.0 cfm per gallon-pumped @ 100 psi
124.67 cc/sec per liter pumped @ 689 kpa
124.67 cc/sec per liter pumped @ 689 kpa
Weight
25 lbs (11.4 kg)
GHO Length
54.03”(1397.8 mm)
Used w/55 gallon drums
Used w/55 gallon drums
GHO-S Length
48.92” (1242.6 mm)
Used w/30 gallon drums
Used w/30 gallon drums
