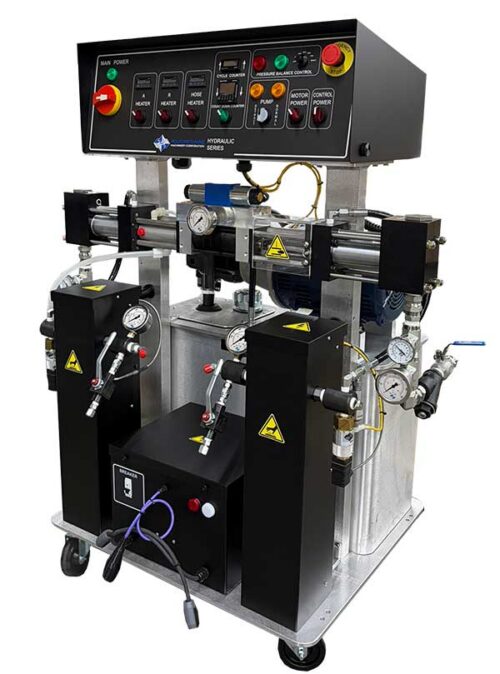

PH-40
PH-40 2000 psi (138 bar)
PH-40
Ideal for use in High Output Roofing Applications
Includes Pressure Balance Control System and Count Down Shutoff
MODEL
PH-40
Output
40 lbs/min (18.14 kg/min)
Max Working Pressure
2,000 psi (138 bar)
Max Hose Length
410 ft (121.9 m)
Heater Wattage
15,000 watts Total (Dual htr)
18,000 watts Total (Dual htr)
21,000 watts Total (Dual htr)
18,000 watts Total (Dual htr)
21,000 watts Total (Dual htr)
Hose Heating Power
120 Volts
Max Fluid Temperature
190 F (87.7 C)
Main Voltage
1 x 208-230V, 60 Hz
Electrical @ 230V Single Phase
116A–15,000W heaters
129A–18,000W heaters
142A–21,000W heaters
129A–18,000W heaters
142A–21,000W heaters
Main Voltage
3 x 208-230V, 50/60 Hz,
3 x 380V, 50/60 Hz
3 x 380V, 50/60 Hz
Electrical @ 230V Three Phase
67A–15,000W heaters
75A–18,000W heaters
82A–21,000W heaters
75A–18,000W heaters
82A–21,000W heaters
Dimensions
40”w x 26”d x 52”h
(101cm x 66cm x 132cm)
(101cm x 66cm x 132cm)
Weight
555 lbs(251.7 kg)
