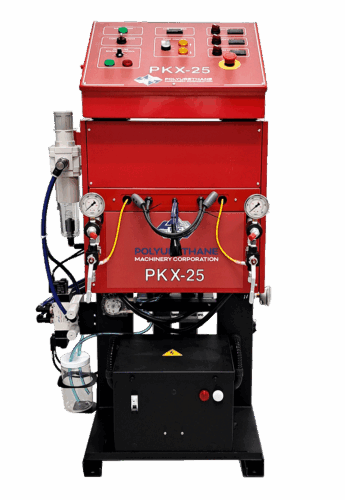

PKX-25
Ideal for Protective Coating Applications
PKX-25
Lightweight small footprint design, the PKX-25 is a high efficiency pneumatic proportioner that allows for high output (25 CFM) at lower CFM requirement.
MODEL
PKX-25
Output
1.7 gal/min (6.43 liters/min)
Max Working Pressure
3,000 psi (206 bar)
Max Hose Length
210 ft (64 m) w/70V T
Heater Wattage
10,500 watts (total)
Hose Heating Power
70 V
Max Fluid Temperature
190°F (87.7 °C)
Electrical @ 7.5KW Heater
31 amps @ 3 x 230V, 54 amps @ 1 x 230V
Dimensions
26in x 25in x 48in
(64cm x 64cm x 123cm)
(64cm x 64cm x 123cm)
Weight
300 lbs (136kg)
