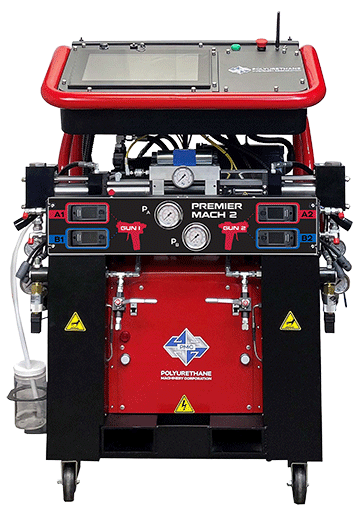

Premier Mach 2
A dual gun proportioner for residential and commercial spray foam applications.
Premier Mach 2
The Premier Mach 2 allow you to spray 2 guns simultaneously while maintaining on-ratio pressure.
MODEL
Premier Mach 2
Output
40 lbs/min Supports up to two 0 2 or equivalent size chambers
Max Working Pressure
2,000 psi (138 bars)
Max Hose Length
Output 1 Min: 160’ - Max 260’ (48.77m - 79.25 m) Output 2 Min: 160’ - Max 260’ (48.77 m - 79.25 m)
Heater Wattage
18,000 watts (dual htr)
Hose Heating Power
Dual 70v Output Multitap
Max Fluid Temperature
190 °F (87.7 °C)
Weight (w/o Hydraulic Fluid)
690 lbs (313 kg)
Electrical @ 18KW Heaters
77 amps @ 3 x 230V
Dimensions
40in x 30in x 55in (102cm x 76cm x 140cm)
