Xtreme Spray Gun

Xtreme Spray Gun

Category:

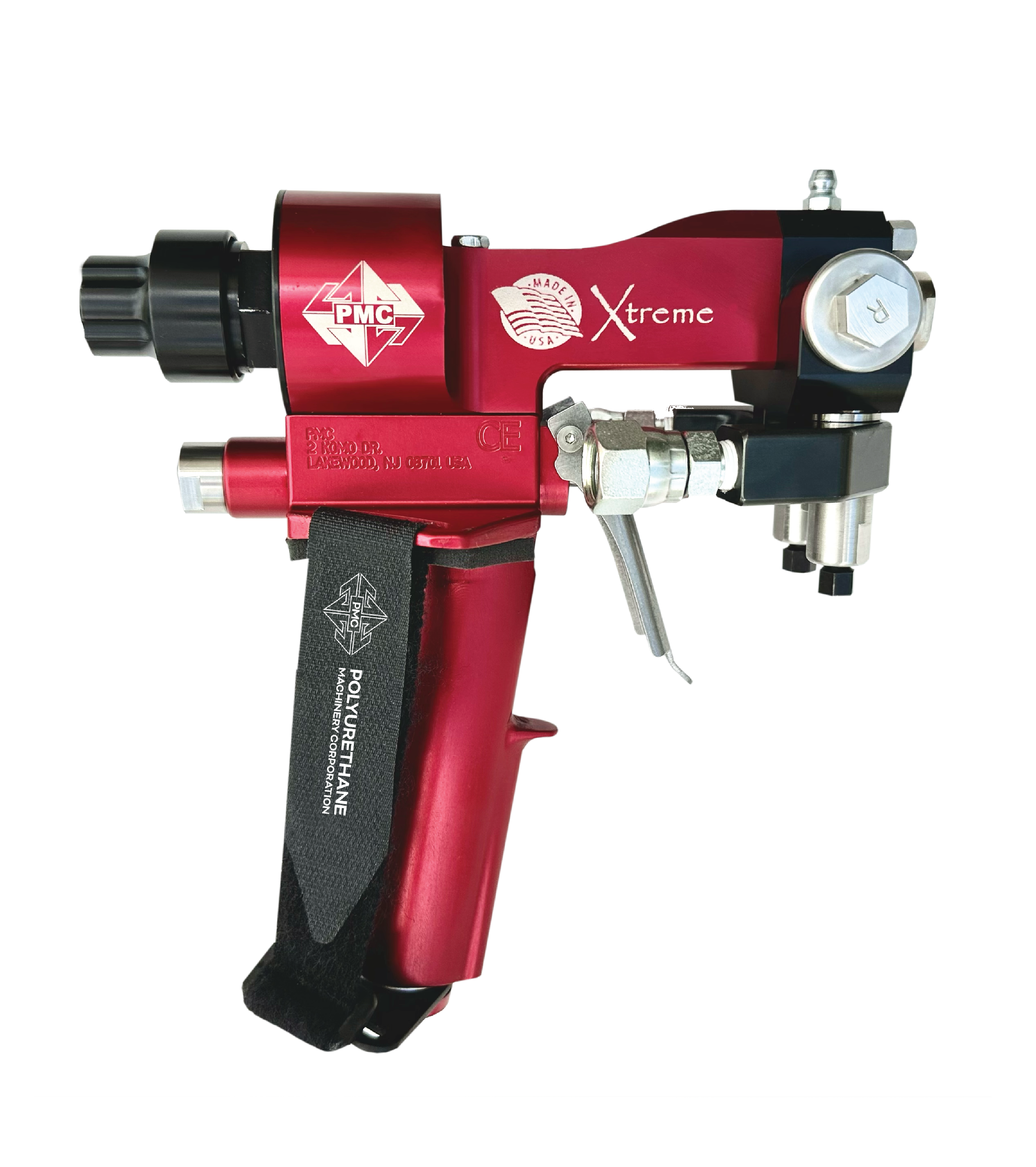

In 2020, PMC vowed to upgrade and enhance the most useful components and functionalities of the AP-2 and AP-3 spray guns. PMC has combined the most reliable and eliminated the least practical elements of these guns. These improvements have turned our weakness into an extreme asset.

The PMC Xtreme gun offers proven reliability, with as much as 60 sets of material sprayed with the same diamond plated mixing chamber and engineered resin side seal set. The robust trigger assembly has been improved, moving to a spool and liner designed for increased reliability and consistency. A spring-loaded check valve locks chemical out of the handle, eliminating material seepage into any of the porting or trigger area.

With fewer parts, less downtime, and more savings for the end user, PMC proudly presents the Xtreme.

MODEL
PMC Xtreme Spray Gun
Weight (w/o coupling block)
2.4 lbs (1.1 kg)
Weight (w/coupling block)
3.1 lbs (1.4 kg)
Maximum Working Pressure
3,500 psi (245 bar)
Maximum Air Pressure
125 psi (8.6 bar)
Maximum Production (1:1 Ratio)
50 lbs/min (22.7 L/min)
Minimum Production (1:1 Ratio)
3.1 lbs/min (1.55 L/min)
Dimensions
7.1”H x 3.4”W x 7.5” L
(181mm x 87mm x 189mm)
